Bidding for this lot will end on Wednesday, March 26th. The auction will begin at 10:30AM PDT and lots are sold sequentially via live auctioneer; tune in to the live streaming broadcast on auction day to follow the pace. Note other lots in the auction may close on Thursday, March 27th or Friday, March 28th.
A Vista Cruiser motion control camera system built by Industrial Light & Magic (ILM) and used extensively on ILM's films of the 1980s and 1990s. The camera debuted on Steven Spielberg's E.T. the Extra-Terrestrial, though its first extensive-use project was Richard Marquand's Star Wars: Return of the Jedi.
From the beginning and throughout the company's history, ILM had to develop tools and technologies to achieve the shots it endeavored to create. The two core technologies that made the first Star Wars film's award-winning visual effects possible were motion control camera passes and bluescreen compositing technology. Motion control allowed camera movements to be recorded exactly and repeated, allowing for complex shots with camera movements that also feature multiple elements shot in different motion control passes. Without these, the film's many aerial dogfights, breathtaking fly-bys, and other seemingly impossible shots could never have been achieved.
The original Dykstraflex motion control camera crane - custom-built by ILM for A New Hope and named for visual effects supervisor John Dykstra - was a breakthrough piece of technology, but also had specific flaws and limitations. The Vista Cruiser (hereafter referred to as V.C.) was ILM's second attempt at a custom motion control camera system and was designed to improve on the Dykstraflex's flaws. Essentially Dykstraflex 2.0, the V.C. was used at ILM for many years afterwards as its primary motion control camera.
ILM named the camera system for its capacity to shoot both 8-perf VistaVision film as well as traditional 4-perf. The VistaVision film format, originally developed in the 1950s when studios were attempting to provide superior alternatives to television, turned traditional 35mm film horizontal to create a sumptuous widescreen film frame (covering eight perforations of the film stock instead of four). VistaVision was regularly used in visual effects work from the era, as the larger negative area maintained higher quality when being duplicated through the optical compositing process. Vista Cruiser was also the name of an Oldsmobile automobile made in the 1960s and 1970s, and a badge off one of these Vista Cruisers was salvaged by ILM and mounted to the side of the camera head.
Work began on the V.C. camera system during production of The Empire Strikes Back circa 1979 after ILM relocated to Northern California. Visual effects supervisor Richard Edlund said at the time: "We are now working on a new Vista Cruiser camera. It will have an 80-foot track, as opposed to the 42-foot track which we have now. It will have a longer boom arm, be a steadier camera, and have a greater film capacity. It will also have a better video viewing system, a better follow focus system, and a better motion control system."
Edlund later added: "The Vista Cruiser camera was a project that I wanted to instigate because it would solve all of the problems we had with the original Dykstraflex camera, which were numerous. The Dykstraflex - it was possible to do a lot of things with it, but it had a terrible viewfinder."
The new camera was a completely custom design and was largely engineered by ILM's Bill Neil, with assistance from Gene Whiteman, Mike Bolles, and others at ILM. "The plan was to have a 100' track, and something like a 12' boom, and a steady camera using the trojan helmet camera again. This was a key part of the photographic system," recalled Edlund. "I had Bill Neil designing it because it was a three-dimensional nightmare. It was very complicated - a very small camera with a shuttle movement that was steady. It had two shutters that worked in tandem as I didn't want to have a big shutter that would make the camera too bulky. It used a 200-foot Arriflex magazine, modified it so it could run forward and backwards."
The body of the V.C. was designed to interchange ground glass elements in custom frames with film movements for both 8-perf and 4-perf shooting. Operators lined up shots using the manual viewtube or a tube-mounted video tap, in conjunction with the ground glass, then changed the ground glass for the film movement and the viewing tube for the film magazine to capture the final shot.
Ultimately, however, the improved camera system was not completed in time for use on Empire. It was first employed on E.T. the Extra-Terrestrial before being used extensively on Return of the Jedi. Said Edlund, "The Vista Cruiser was much smaller and narrower than the previous camera. The dynamics of the shots in [Return] depended to a great extent on how close the camera could get to the models. Zooming through the innards of the Death Star, that whole sequence was shot with the Vista Cruiser."
After Return, ILM used the V.C. throughout the 1980s on every film that required motion control camera work, including notable titles like the Back to the Future films and Indiana Jones sequels. Circa 1987, ILM built two additional copies of the camera. Originally developed under the project name "Vista Cruiser, Jr.," they were later dubbed the MooseFlex and D.F. cameras (the latter named due to being mounted on the original Dykstraflex crane for a time). At that point, ILM had multiple options for motion control crane cameras and could utilize motion control cranes on multiple stages simultaneously. The camera system appears in numerous photos from the production of Return as well as other key ILM titles of the 1980s. Many of ILM's noted wizards worked directly with the V.C. system over the years, including Edlund, Dennis Muren, Ken Ralston, Mike McAlister, Peter Daulton, Pat Sweeney, Craig Hosoda, and many others.

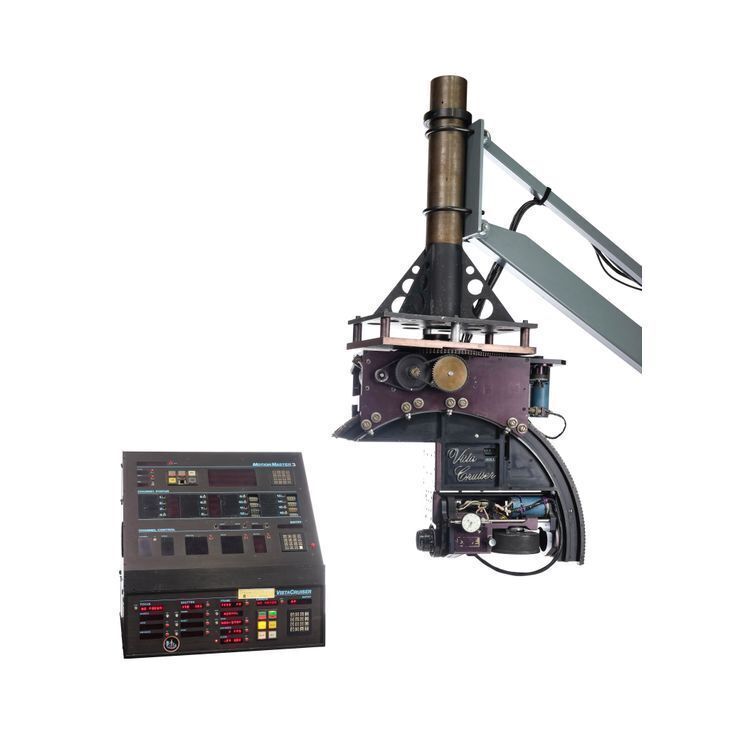

The primary components of the Vista Cruiser are the camera itself; the "trojan helmet"-shaped rotator head that facilitates pan, tilt, and roll movements; the camera crane, which was also motorized and computer-controlled; and the custom-built electronic control system, which includes the custom-built electronic V.C. control box and a MotionMaster control box. Included in this lot are the original camera, trojan rotator head, the mount that attaches the head and camera to the crane, and the electronic control system. The rotator head and camera are presented on a hydraulic stand fabricated from an engine hoist. Mounted on the camera's body is an original Nikkor lens from ILM. The camera and rotator head are in operating condition, while the camera control box's complete electronic functionality is unknown. The original crane, which was fabricated outside of ILM, is not included.
The trojan rotator head, based on a design by noted effects technician Don Trumbull and named for the resemblance of its side profile to a trojan warrior helmet, is driven by stepper motors. The "Vista" badge on its side is original, though the "Cruiser" badge is a replacement as ILM's original was lost over the years. The head is tagged with a metallic ILM inventory tag.
The MotionMaster control box was responsible for saving specific motion patterns and making them repeatable. ILM had several MotionMasters, with this one numbered "3." While it is complete and intact, its electronics are currently nonfunctional. The MotionMaster has a small sticker attached indicating it was completed in July 1981. The electronic control boxes are tagged with vintage Lucasfilm property tags.
Also included are a range of other key components for the system, all of which are originals from ILM: an Acme-type 4-perf film movement marked "VC" for Vista Cruiser; an 8-perf film movement marked "MF" for MooseFlex; a 4-perf ground glass marked "MF"; an 8-perf ground glass marked "VC"; the original early-80s-era manual view tube; a custom viewtube mounting block; two 8-perf video tap; an additional mounting block for the video tap marked "VC"; and two 200' film magazines modified by ILM to work with the Vista Cruiser. Also included are two original wood accessory cases from ILM.
An extensive archive of hand-drawn blueprints and technical drawings related to the Vista Cruiser and Vista Cruiser, Jr. cameras is also included, numbering over 225 pages in total. These range from small mechanical components to wide views of the system. A folder of paperwork and documents relating to the V.C.'s early use at ILM are included along with a small incident light meter made by Spectra, original to ILM and with a case marked "Vista Cruiser."
Non-original elements to the system include: the hydraulic hoist that currently supports the camera; rotator head and mount; a blue electronic control box that currently drives the pan, tilt, and roll functionality of the rotator head; and an accompanying modern-era joystick control. The camera and rotator head remain in working order and could potentially be used for effects work today if mounted to another crane system. All elements of the system remain in good overall condition, with only minor wear and tear visible from production use over the years.
Like the Dykstraflex before it, the Vista Cruiser maintains a special place in the minds of those who worked with it, as well as fans of the franchise, effects aficionados, and film scholars more generally. As Edlund stated, "I think it's the best motion control camera ever built, there's no question about that. It's fantastic. It's a beautiful camera, and it served its purpose. It solved all the problems." The Vista Cruiser has extensive pedigree and represents a significant piece of both visual effects history and technology. It stands as a testament to the brilliance of the effects teams behind the biggest blockbusters of the recent era. Dimensions: (largest) 42" x 65" x 65" (107 cm x 165.25 cm x 165.25 cm)
Special shipping required; see notice in the Buyer's Guide.
Contains electronic and mechanical components; see notice in the Buyer's Guide.
Estimate: $100,000 - 200,000
This item comes with a Propstore Certificate of Authenticity.
